19mm Laser Beam Adapters, Clamps, Mounts, Beam Tubes

Laser Bezel Adapters

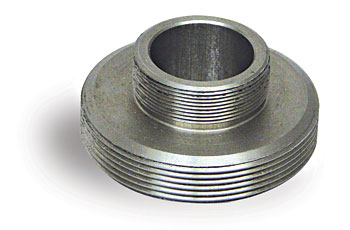

Coherent Diamond K-Series

		Part #		USE
		ADP-K500-CMNT		Threads to Laser Bezel
		Provides a method to rigid mount BT-19 Beam Tubes to lasers, flanges, mounting plates, etc...
						Download Technical Drawing



ULC-XX-OEM

		Part #		USE
		ADP-UNIV1-CMNT		Bolts to Modified Laser Bezel
		Provides a method to rigid mount BT-19 Beam Tubes to lasers, flanges, mounting plates, etc...
						Download Technical Drawing



For Use with BTA Threaded Beam Tubes

		Part #		USE
		ADP-19-CMNT		Threads to Laser Bezel
		Provides a method to rigid mount BT-19 Beam Tubes to lasers, flanges, mounting plates, etc...
						Download Technical Drawing

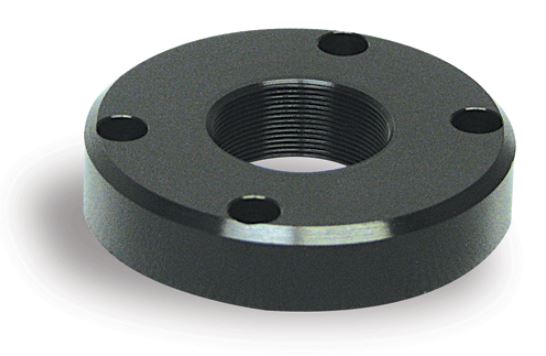

Synrad

		Part #		USE
		ADP-S48-CMNT		Bolts to Laser Bezel
						Download Technical Drawing



Universal Laser Systems, UL-XX-OEM

		Part #		USE
		ADP-UNIV2-CMNT		Replaces Laser Bezel
						Download Technical Drawing



Additional options available upon request

We would be happy to discuss a custom designed solution that's right for any project, large or small. For additional information, contact a Haas Laser Technology sales representative today. (973) 598-1150



** Specifications subject to change without notice. Consult a Haas Laser Tech engineer for the latest specification changes or any additional assistance. **
