Overview

Haas beam benders are precision-aligned mirror assemblies used to redirect laser beams by 90° while maintaining excellent beam quality and alignment stability. Designed with durable construction and precision-machined components, they are built to perform reliably in demanding production environments. Whether used as a permanent fixture in a factory system or as a flexible element in a lab-based prototype on an optical table, Haas beam benders provide the stability, adjustability, and compatibility needed for modern laser applications. Each unit features a kinematic mirror mount and modular housing, with options for various wavelengths, power levels, and cooling configurations. 45° options available upon request.

Available Product Series
  • 19mm Series
  • 25mm Series
  • 38mm Series
  • 50mm Series
  • 75mm Series
Compatible Laser Types
  • Collimated Input

Select the part number you need and click the button below to request a quote and more information.

Request Quotation
Laser Beam Delivery
Applications
More infomation about use cases and industries served
Learn More

Industrial Applications

Haas beam benders are used across a wide range of industries where laser systems are integrated into precision manufacturing and materials processing environments. These components—also referred to as beam turners or mirror mounts—are essential in any setup where the laser beam path needs to be redirected to fit space constraints or process flow requirements.

In industrial manufacturing, beam benders are commonly installed in automated systems for laser cutting, welding, and drilling, etc. They are built to withstand harsh factory conditions and continuous operation, making them well-suited for use in sectors such as automotive, aerospace, medical device fabrication, and electronics assembly. Their ability to maintain alignment and stability over time makes them ideal for high-throughput production systems.

Research and Laboratory Use

In laboratory and research settings, beam turners are used on optical tables to prototype new laser configurations or test setups. Their modularity and precision adjustment make them a core part of experimental optics and photonics systems, including those found in university labs, national research facilities, and advanced manufacturing R&D groups.

Industries Served

  • Automotive & Transportation

  • Aerospace & Defense

  • Medical Device Manufacturing

  • Electronics & Semiconductor

  • Energy Systems

  • Academic & Research Labs

  • Contract Manufacturing and Job Shops

Whether deployed in a cleanroom, on a production line, or in a flexible test environment, Haas beam benders provide the reliability and performance required for demanding laser applications.

Product selection guidance
Get help selecting the correct part number for your application
Learn More

Specing a Beam Bender

Haas beam benders are defined by three key parameters:

1. Aperture Size

Available in 19 mm, 25 mm, 38 mm, 50 mm, and 75 mm series.
Choose the aperture based on your beam diameter, with 1.5x margin recommended to avoid clipping.

2. Cooling Type

Depending on your system, a passively cooled option may not be enough. Use water cooling for above 100watt systems.

Another aspect to keep in mind is if you need any additional parts for water cooling such as a pump and reservoir.

3. Optional Features

Low Force: This uses a different design that put lets force on the optics. Generally recommened for fused silica optics.

Electrical Interlock:  Reports if optic is installed via a single contact switch.

Accessories
View the accessories for Beam Benders
Learn More

Laser Beam Bender Product Configurations

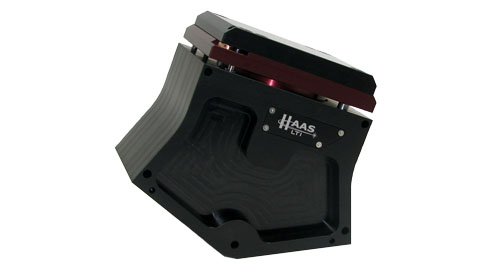

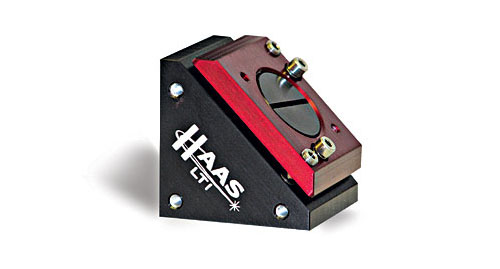

19mm aperture laser beam bender

BBK-19

19mm Series

Configure Now

Select part numbers and download CAD files

25mm aperture laser beam bender

BBK-25

25mm Series

Configure Now

Select part numbers and download CAD files

38mm aperture laser beam bender

BBK-38

38mm Series

Configure Now

Select part numbers and download CAD files

50mm aperture laser beam bender

BBK-50

50mm Series

Configure Now

Select part numbers and download CAD files

75mm aperture laser beam bender

BBK-75

75mm Series

Configure Now

Select part numbers and download CAD files

Accessories

Laser Bezel Adaptors

A selection of bezel adapters to protect the beam path.

View Part

Alignment Targets

Alignment targets make laser beam setup and optical alignment fast and repeatable. Available for all Haas LTI beam delivery sizes, they simplify system setup, troubleshooting, and maintenance.

View Part

Optic Cleaning Kit

Specifically designed for industrial laser systems, the Optic Cleaning Kit contains the proper tools and solutions to clean laser optics.

View Part

Mirrors

Our mirrors redirect laser beams at 45° with near-100% reflectivity. Options include visible-transmissive mirrors with AR coatings for camera integration. Specs available to guide selection.

View Optics

Product Features

Billet aluminum construction

CNC machined from 6061 aluminum to give robust performance in demanding environments. Perfect for factories, production use, optical tables and prototyping.

Sealed optics & beam path

Our sealed optical beam path allows you to create a positive internal pressure to prevent dust and contaminants from entering the system. Great for dusty or dirty environments.

Fine adjustments in all directions

Using 80 pitch adjusters allows for infinite adjustment to create a perfectly centered beam. Paired with our alignment targets makes it easy to align multiple beam benders in series.

Request a quotation and lead times for parts, or ask questions about our products & services
Request Quotation

Related Products

Optic Cleaning Kit

Specifically designed for industrial laser systems, the Optic Cleaning Kit contains the proper tools and solutions to clean laser optics.

View Product

Beam Expanders

Fixed-ratio laser beam expanders for increasing beam diameter and improving collimation in laser processing systems

View Product

High Power Laser Beam Dump

High-performance beam dumps safely absorb greater than 500 watts of laser power. Currently available in 38mm and 50mm aperture sizes.

View Product

Telescopic Beam Tubes: Spring Bellows

Designed for continuous motion and Z-axis adjustments. The supported spring design prevents sagging and keeps the beam path enclosed during motorized travel.

View Product

IR Laser Alignment Cards

Thermal sensitive CO2 alignment cards are used to align optical components to the laser beam axis.

View Product

Standard Laser Beam Dump

Standard beam dumps come with either water or air cooling and can handle up to 500 watts.

View Product

Alignment Targets

Alignment targets make laser beam setup and optical alignment fast and repeatable. Available for all Haas LTI beam delivery sizes, they simplify system setup, troubleshooting, and maintenance.

View Product

Laser Beam Bender

Beam benders redirect a laser beam 90° with kinematic adjustment. Built for production or lab use. Ideal for redirecting a laser beam around a mechanical structure.

View Product

Beam Splitter

Beam splitters are for directing or sampling part of a laser beam to a second path, sensor, or diagnostic tool. Ideal for process monitoring and multi-station setups.

View Product

XY Crosshair Generator

Creates X & Y axis crosshairs on any color or black and white TV and/or video system.

View Product

Lenses

Discover our high-performance focus lenses, from meniscus to plano-convex, built for precision and durability. Specs on wavelength, material, size, and coatings are available in the More Info section.

View Optics

Mirrors

Our mirrors redirect laser beams at 45° with near-100% reflectivity. Options include visible-transmissive mirrors with AR coatings for camera integration. Specs available to guide selection.

View Optics
    BBK-19-25M030-NN 25mm 3.0mm None None BBK-19-25M030-NI 25mm 3.0mm None Interlock BBK-19-25M030-NL Suggested for Fused Silica substrates 25mm 3.0mm None Low Force BBK-19-25M030-WN 25mm 3.0mm Water None BBK-19-25M040-NN 25mm 4.0mm None None BBK-19-25M040-NI 25mm 4.0mm None Interlock BBK-19-25M040-NL Suggested for Fused Silica substrates 25mm 4.0mm None Low Force BBK-19-25M040-WN 25mm 4.0mm Water None BBK-19-25M050-NN 25mm 5.0mm None None BBK-19-25M050-NI 25mm 5.0mm None Interlock BBK-19-25M050-NL Suggested for Fused Silica substrates 25mm 5.0mm None Low Force BBK-19-25M050-WN 25mm 5.0mm Water None BBK-19-25M060-NN 25mm 6.0mm None None BBK-19-25M060-NI 25mm 6.0mm None Interlock BBK-19-25M060-NL Suggested for Fused Silica substrates 25mm 6.0mm None Low Force BBK-19-25M060-WN 25mm 6.0mm Water None BBK-19-25M064-NN 25mm 6.35mm None None BBK-19-25M064-NI 25mm 6.35mm None Interlock BBK-19-25M064-NL Suggested for Fused Silica substrates 25mm 6.35mm None Low Force BBK-19-25M064-WN 25mm 6.35mm Water None BBK-19-25030-NN 1.0in 3.0mm None None BBK-19-25030-NI 1.0in 3.0mm None Interlock BBK-19-25030-NL Suggested for Fused Silica substrates 1.0in 3.0mm None Low Force BBK-19-25030-WN 1.0in 3.0mm Water None BBK-19-25040-NN 1.0in 4.0mm None None BBK-19-25040-NI 1.0in 4.0mm None Interlock BBK-19-25040-NL Suggested for Fused Silica substrates 1.0in 4.0mm None Low Force BBK-19-25040-WN 1.0in 4.0mm Water None BBK-19-25050-NN 1.0in 5.0mm None None BBK-19-25050-NI 1.0in 5.0mm None Interlock BBK-19-25050-NL Suggested for Fused Silica substrates 1.0in 5.0mm None Low Force BBK-19-25050-WN 1.0in 5.0mm Water None BBK-19-25060-NN 1.0in 6.0mm None None BBK-19-25060-NI 1.0in 6.0mm None Interlock BBK-19-25060-NL Suggested for Fused Silica substrates 1.0in 6.0mm None Low Force BBK-19-25060-WN 1.0in 6.0mm Water None BBK-19-25064-NN 1.0in 6.35mm None None BBK-19-25064-NI 1.0in 6.35mm None Interlock BBK-19-25064-NL Suggested for Fused Silica substrates 1.0in 6.35mm None Low Force BBK-19-25064-WN 1.0in 6.35mm Water None BBK-19-28030-NN 1.1in 3.0mm None None BBK-19-28030-NI 1.1in 3.0mm None Interlock BBK-19-28030-NL Suggested for Fused Silica substrates 1.1in 3.0mm None Low Force BBK-19-28030-WN 1.1in 3.0mm Water None BBK-19-28040-NN 1.1in 4.0mm None None BBK-19-28040-NI 1.1in 4.0mm None Interlock BBK-19-28040-NL Suggested for Fused Silica substrates 1.1in 4.0mm None Low Force BBK-19-28040-WN 1.1in 4.0mm Water None BBK-19-28050-NN 1.1in 5.0mm None None BBK-19-28050-NI 1.1in 5.0mm None Interlock BBK-19-28050-NL Suggested for Fused Silica substrates 1.1in 5.0mm None Low Force BBK-19-28050-WN 1.1in 5.0mm Water None BBK-19-28060-NN 1.1in 6.0mm None None BBK-19-28060-NI 1.1in 6.0mm None Interlock BBK-19-28060-NL Suggested for Fused Silica substrates 1.1in 6.0mm None Low Force BBK-19-28060-WN 1.1in 6.0mm Water None BBK-19-28064-NN 1.1in 6.35mm None None BBK-19-28064-NI 1.1in 6.35mm None Interlock BBK-19-28064-NL Suggested for Fused Silica substrates 1.1in 6.35mm None Low Force BBK-19-28064-WN 1.1in 6.35mm Water None BBK-25-38040-NN 1.5in 4.0mm (.157in) None None BBK-25-38040-NI 1.5in 4.0mm (.157in) None Interlock BBK-25-38040-WN 1.5in 4.0mm (.157in) Water None BBK-25-38040-WI 1.5in 4.0mm (.157in) Water Interlock BBK-25-38050-NN 1.5in 5.0mm (.200in) None None BBK-25-38050-NI 1.5in 5.0mm (.200in) None Interlock BBK-25-38050-WN 1.5in 5.0mm (.200in) Water None BBK-25-38050-WI 1.5in 5.0mm (.200in) Water Interlock BBK-25-38064-NN 1.5in 6.35mm (.250in) None None BBK-25-38064-NI 1.5in 6.35mm (.250in) None Interlock BBK-25-38064-WN 1.5in 6.35mm (.250in) Water None BBK-25-38064-WI 1.5in 6.35mm (.250in) Water Interlock BBK-25-38095-NN 1.5in 9.5mm (.375in) None None BBK-25-38095-NI 1.5in 9.5mm (.375in) None Interlock BBK-25-38095-WN 1.5in 9.5mm (.375in) Water None BBK-25-38095-WI 1.5in 9.5mm (.375in) Water Interlock BBK-25-38100-NN 1.5in 10mm (.393in) None None BBK-25-38100-NI 1.5in 10mm (.393in) None Interlock BBK-25-38100-WN 1.5in 10mm (.393in) Water None BBK-25-38100-WI 1.5in 10mm (.393in) Water Interlock BBK-38-50050-WN 50mm (1.968 in) 5.0mm (0.200 in) Water None BBK-38-50050-WI 50mm (1.968 in) 5.0mm (0.200 in) Water Interlock BBK-38-50064-WN 50mm (1.968 in) 6.35mm (0.250 in) Water None BBK-38-50064-WI 50mm (1.968 in) 6.35mm (0.250 in) Water Interlock BBK-38-50095-WN 50mm (1.968 in) 9.5mm (0.375 in) Water None BBK-38-50095-WI 50mm (1.968 in) 9.5mm (0.375 in) Water Interlock BBK-38-50100-WN 50mm (1.968 in) 10mm (0.393 in) Water None BBK-38-50100-WI 50mm (1.968 in) 10mm (0.393 in) Water Interlock BBK-38-50250-MN 50mm (1.968 in) 25mm (0.984 in) Internally Cooled Mirror None BBK-38-50250-MI 50mm (1.968 in) 25mm (0.984 in) Internally Cooled Mirror Interlock BBK-38-51050-WN 50.8mm (2.0 in) 5.0mm (0.200 in) Water None BBK-38-51050-WI 50.8mm (2.0 in) 5.0mm (0.200 in) Water Interlock BBK-38-51064-WN 50.8mm (2.0 in) 6.35mm (0.250 in) Water None BBK-38-51064-WI 50.8mm (2.0 in) 6.35mm (0.250 in) Water Interlock BBK-38-51095-WN 50.8mm (2.0 in) 9.5mm (0.375 in) Water None BBK-38-51095-WI 50.8mm (2.0 in) 9.5mm (0.375 in) Water Interlock BBK-38-51100-WN 50.8mm (2.0 in) 10mm (0.393 in) Water None BBK-38-51100-WI 50.8mm (2.0 in) 10mm (0.393 in) Water Interlock BBK-38-51250-MN 50.8mm (2.0 in) 25mm (0.984 in) Internally Cooled Mirror None BBK-38-51250-MI 50.8mm (2.0 in) 25mm (0.984 in) Internally Cooled Mirror Interlock BBK-50-75100-WI 75mm (2.95in) 10mm (.393in) Water Interlock BBK-50-75100-WN 75mm (2.95in) 10mm (.393in) Water None BBK-50-75127-WI 75mm (2.95in) 12.7mm (.50in) Water Interlock BBK-50-75127-WN 75mm (2.95in) 12.7mm (.50in) Water None BBK-50-75250-MI 75mm (2.95in) 25mm (.984in) Internally Cooled Mirror Interlock BBK-50-75250-MN 75mm (2.95in) 25mm (.984in) Internally Cooled Mirror None BBK-50-7560-WI 75mm (2.95in) 6.0mm (.236in) Water Interlock BBK-50-7560-WN 75mm (2.95in) 6.0mm (.236in) Water None BBK-50-7564-WI 75mm (2.95in) 6.35mm (.250in) Water Interlock BBK-50-7564-WN 75mm (2.95in) 6.35mm (.250in) Water None BBK-50-7595-WI 75mm (2.95in) 9.5mm (.375in) Water Interlock BBK-50-7595-WN 75mm (2.95in) 9.5mm (.375in) Water None BBK-50-76100-WI 76.2mm (3.0in) 10mm (.393in) Water Interlock BBK-50-76100-WN 76.2mm (3.0in) 10mm (.393in) Water None BBK-50-76127-WI 76.2mm (3.0in) 12.7mm (.50in) Water Interlock BBK-50-76127-WN 76.2mm (3.0in) 12.7mm (.50in) Water None BBK-50-76250-MI 76.2mm (3.0in) 25mm (.984in) Internally Cooled Mirror Interlock BBK-50-76250-MN 76.2mm (3.0in) 25mm (.984in) Internally Cooled Mirror None BBK-50-7660-WI 76.2mm (3.0in) 6.0mm (.236in) Water Interlock BBK-50-7660-WN 76.2mm (3.0in) 6.0mm (.236in) Water None BBK-50-7664-WI 76.2mm (3.0in) 6.35mm (.250in) Water Interlock BBK-50-7664-WN 76.2mm (3.0in) 6.35mm (.250in) Water None BBK-50-7695-WI 76.2mm (3.0in) 9.5mm (.375in) Water Interlock BBK-50-7695-WN 76.2mm (3.0in) 9.5mm (.375in) Water None BBK-75-100190-WI 100mm 19mm Water Cooled Interlock 90° BBK-75-100190-WN 100mm 19mm Water Cooled No Interlock 90° BBK-75-100250-MI 100mm 25mm Water Cooled Interlock 90° BBK-75-45-100190-WI 100mm 19mm Water Cooled Interlock 45° BBK-75-45-100190-WN 100mm 19mm Water Cooled No Interlock 45° BBK-75-45-100250-MI 100mm 25mm Water Cooled Interlock 45°
