19mm Beam Directing & Positioning

Motorized Z-Axis Unit : MZA-19

Our Motorized Z-Axis Units are fabricated from high-grade anodized aluminum and stainless steel to provide high speed linear positioning of various autofocus and/or laser process head designs. A high torque DC servo motor, belt drive, and precision ball screw provide trouble free operation. The linear stage is guided via (4) miniature recirculating ball trucks. Stage over-travel limits are sensed by non-contact proximity sensors.

All precision components are enclosed within a lightweight, internally sealed enclosure. Optional features include an encoder for use as a CNC controlled Z-Axis. Motorized Z-Axis units are available with linear strokes of 25mm (1.0"), 50mm (2.0") and 100mm (4.0").

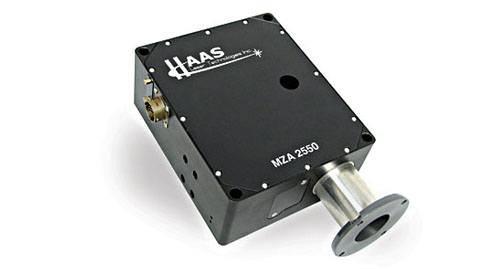

Haas part number MZA-19-50-X shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.

MZA-19 Specifications - Electrical

• Servo Motor: PMDC
• Motor Supply Voltage: 36 VDC
• Connectors: Male 15 Pin Canon & Male 9 Pin Sub D
• Optional Encoder: 500 Line
• Limit Sensors: Proximity Switch

MZA-19 Specifications - Mechanical

• Drive: Fine Pitch Ball Screw
• Motion: Recirculating Ball Trucks
• Velocity: 100mm (3.94")/Second
• Encoder Resolution: 1.9µm x 10-3mm & .078µm x 10-5



Motorized Z-Axis Unit(MZA) Part Numbering Anatomy



Additional options available upon request

We would be happy to discuss a custom designed solution that's right for any project, large or small. For additional information, contact a Haas Laser Technology sales representative today. (973) 598-1150



** Specifications subject to change without notice. Consult a Haas Laser Tech engineer for the latest specification changes or any additional assistance. **
