19mm Laser Beam Directing & Positioning

19mm Kinematic Beam Splitter

Kinematic Beam Splitter : BSK-19

The BSK-19 Series kinematic laser beam splitters provide a 90º angular beam displacement of reflected beam with minimal lateral beam displacement of transmitted beams (lateral displacement is determined by optic thickness). Several laser beam splitting options are available, optics not included.

Independent angular orthogonal mirror correction with eighty(80) pitch adjustment screws provides precise, repeatable alignment. Optic removal & replacement can be accomplished without affecting alignment. Several mirror diameters and thicknesses can be accommodated.

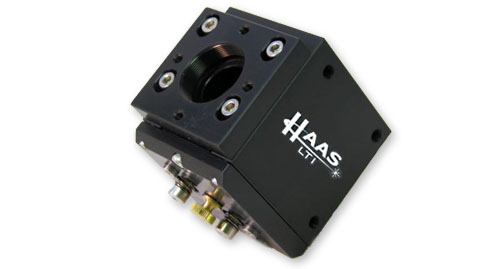

Haas part number BSK-19-25064-S shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.



BSK-19 Specifications



Kinematic Beam Splitter (BSK) Part Numbering Anatomy

BSK-19 dash Laser Beam Delivery Component Part # Laser Beam Delivery Component Part # dash Laser Beam Delivery Component Part #
    arrow arrow   arrow

Optic Diameter
25 : 1.0"
25M : 25mm
28 : 1.1"
Optic Edge Thickness
030 : 3.0mm
040 : 4.0mm
064 : 6.4mm

Mirror Suspension
S : Standard
L : Low Force*


 *Low Force recommended for Fused Silica optic substrates

Additional options available upon request

We would be happy to discuss a custom designed solution that's right for any project, large or small. For additional information, contact a Haas Laser Technology sales representative today. (973) 598-1150



** Specifications subject to change without notice. Consult a Haas Laser Tech engineer for the latest specification changes or any additional assistance. **
