38mm Spatial Beam Expander

Spatial Filter / Beam Expander : SFBE-38

Spatial Filter/Beam Expander provides uniform energy distribution at the work surface by removing unwanted energy form outer regions of the beam profile. Thus by removing the outer halo of the less intense energy from a noisy laser beam it not only reduces the heat affected zone but also produces consistent cutting and drilling operations.

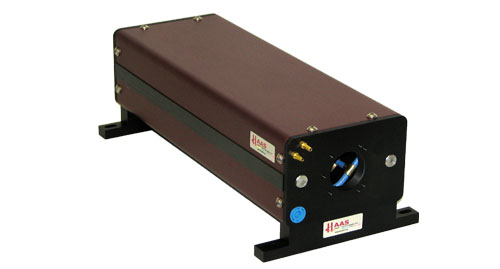

Haas part number SFBE-38-3X-10.6 shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.



SFBE-38 Spatial Filter Beam Expander

SFBE-38 Features



SFBE-38 Specifications



Spatial Filter Beam Expander (SFBE)
Part Numbering Anatomy

SFBE-38 dash Laser Beam Delivery Component Part # dash Laser Beam Delivery Component Part # dash Laser Beam Delivery Component Part #
    arrow   arrow   arrow

Expansion Ratio
1.0 : 1x
1.5 : 1.5x
1.75 : 1.75x
2 : 2x
3 : 3x
xx : Custom Expansion

Pinhole Diameter
100 : 100 µm
150 : 150 µm
200 : 200 µm

Wavelength
10.6 : CO2
xx : Inquire




Additional options available upon request

We would be happy to discuss a custom designed solution that's right for any project, large or small. For additional information, contact a Haas Laser Technology sales representative today. (973) 598-1150



** Specifications subject to change without notice. Consult a Haas Laser Tech engineer for the latest specification changes or any additional assistance. **
